2 Sets GSM-CTL GSM controller order package + Free shipipng with

$180.00

Payments by PayPal
Always Free Shipping
Specification:
Model name: GSM-CTL
Output: Double relay output channel.
Output Rating: Maximum 30A /220V output channel
Power input: DC12V power input
Working frequency: GSM Quad band

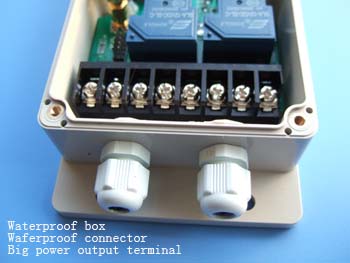

Cover material: ABS water proof box
Weight: 0.6kg

GSM-CTL GSM Remote Control System ( Relay Control )
The GSM-CTL is a wireless gsm remote control switch that connects to the GSM cell phone network.

New version 2015 GSM-CTL controller, more features including:
  • Log data
  • Fast program and reset button on board
  • Support customized SMS controller for ON/OFF controller and pulse control each seperate relay channels)

Same quality, better functions and more features!

Order Package including:

2pcs GSM-CTL Controller box
2pcs GSM magnetic mount antenna (3 meter length wire)
2pcs USB program adapter board with cable

It has seven independent relay switches, and the NO.1 Relay switch is activated by calling its cell phone number, it will reject the call without answering and switch on the device connected to it,then there are no call costs incurred when dialling the unit, it will recognise an authorised telephone number calling it and reject the call without answering.
It has another independent relay switches which can be switched on or off by sending the GSM-CTL an sms text message.

Specifications:

  • Real-time & interactive control
  • 2 channels  250V / 30A 50 Hz relay contacts
  • Works  with GSM phones
  • Operating temperature (-25 .. +60 °C)
  • Relays operates almost every appliance
  • Small standby power (< 20mA 12V)
  • Relay memory after power failure
  • Optional password to keep the system at safety operating mode.
  • Remote Password change
  • Two operating mode optional ( remote setting with GSM phones)
  • One relay is woking with the phone calling, and others working with the SMS
  • Commands can added to GSM-phone number for raeady made commands
  • Working voltage is at 9~24V AC /DC.

Applications:

Applications include the remote control of heating in holiday homes, lighting, engine pre-heaters, aviation engine heaters, irrigation systems, water well pumps, pumping stations, cabin heaters, resetting of remote servers, arming and disarming security systems, access control of gates and garage doors.

Wafer GSM-CTL USB programmer

GSM Magnet Mount Antenna ( Specially designed for Water proof type GSM remote control box)


Add to Cart:

  • Model: GSM-CTL
  • Shipping Weight: 1.2g
  • 62 Units in Stock
