3G version GSM-RELAY6 SMS remote controller and 6 alarm input

$110.00

Payments by PayPal
Always Free Shipping
Specification:
Model name: GSM-RELAY6 V2019
Output: Six relay output channel
Input: Six alarm input port
On board backup battery for power off alarm
Output Rating: Maximum 10A /220V output channel
Power input: DC12V power input
Working frequency: 3G and GSM (Quad band)
Cover material: ABS water proof box
Weight: 0.6kg

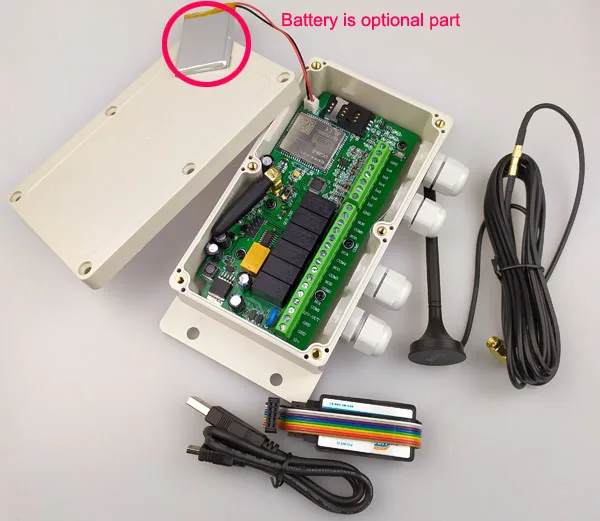

Order Package including:
1pcs GSM-RELAY6 Controller box (2019 version)
(Rechargeable battery is included )
1pcs GSM magnetic mount antenna (3 meter length wire)
1pcs WAFER USB program adapter board with cable

New Version GSM-RELAY6 3G / GSM remote switch controller

( For this order,that is 3G version,please select the suitable sim card provider with the following working frequency )

RTU5024-3G-module-600

GSM-RELAY6-3G-600

Features support:

1). Six Relay output,

2). Six Alarm input port,

3). Rechargeable battery for power failure alert

4). DC12V output for siren when alarm happen

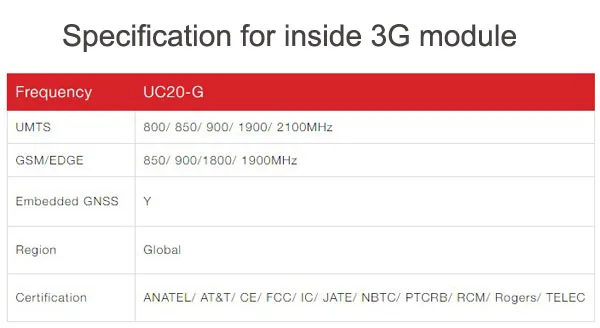

This board is working at 3G and GSM QUAD BAND: 850/900/1800/1900MHz

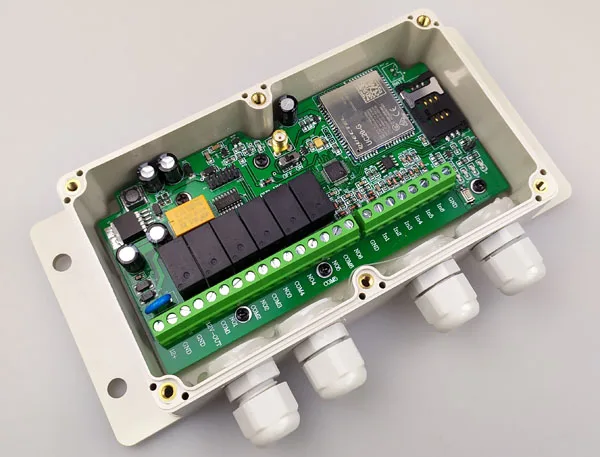

This order is Controller with antenna,mounted inside the water proof plastic box.

Important note:

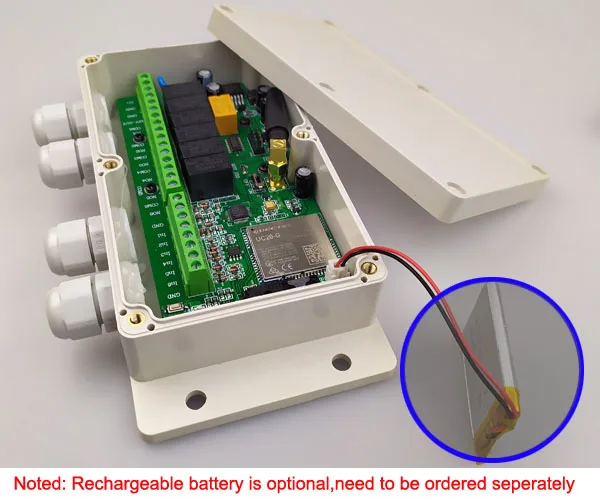

This order also not including the rechargeable battey which is used for power failure alarm, if you need the battery,please order from other link

GSM-RELAY6-3G-601

This controller is suitable for working at almost all of the world.

The GSM-RELAY6 is a wireless gsm remote control switch that connects to the GSM cell phone network.
It has six independent relay switches, and the NO.1 Relay switch is activated by calling its cell phone number, it will reject the call without answering and switch on the device connected to it,then there are no call costs incurred when dialling the unit, it will recognise an authorised telephone number calling it and reject the call without answering.
It has other 5 independent relay switches which can be switched on or off by sending the GSM-RELAY6 an sms text message.

It also has 6 alarm input, when input is shorted to GND,will trigger the alarm and send the alarm SMS

GSM-RELAY6-3G-550

Specifications:

  • Real-time & interactive control
  • 6 channels 250V 10A 50 Hz relay contacts
  • 6 switch type alarm input
  • Works with GSM phones
  • Operating temperature (-25 .. +60 °C)
  • Relays operates almost every appliance
  • Small standby power (< 10mA 12V)
  • Relay memory after power failure
  • Optional password to keep the system at safety operating mode.
  • Remote Password change
  • Two operating mode optional ( remote setting with GSM phones)
  • One relay is woking with the phone calling, and others working with the SMS
  • Commands can added to GSM-phone number for ready made commands
  • Working voltage is at DC12V.
  • Support the Rechargeable battery for power failure alert (Battery is optional part)
  • DC12V voltage output for siren when alarm happen

Applications:

Applications include the remote control of heating in holiday homes, lighting, engine pre-heaters, aviation engine heaters, irrigation systems, water well pumps, pumping stations, cabin heaters, resetting of remote servers, arming and disarming security systems, access control of gates and garage doors.

GSM-RELAY6-3G-602


Add to Cart:

  • Model: GSM-RELAY6 3G
  • Shipping Weight: 0.7g
  • 99 Units in Stock
  • Manufactured by: Wafer Microelectronics Co.,Ltd.


This product was added to our catalog on Friday 08 February, 2019.
